Insulated Panel Products

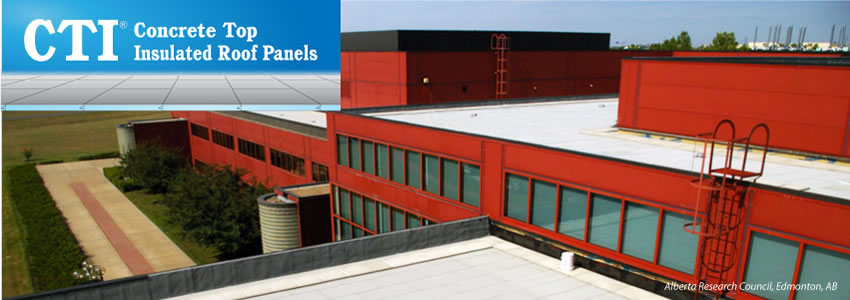

Tech-Crete CTI® roof panels are self ballasted insulating panels designed for use in a protected membrane roof (PMR) assembly. In a PMR assembly the membrane must be protected from the primary causes of membrane failure: UV radiation, freeze-thaw cycling, thermal cycling and physical damage. Tech-Crete CTI® roof panels offer superior insulation and membrane protection in one easy step.

CTI® Roof Panel Facts:

  • 2’ x 4’ (610 mm x 1220 mm) light-weight 4.5 lb/ft2 (22.5 kg/m2) self-ballasted concrete topped insulated panel

  • An insulated panel for Protected Membrane Roof (PMR) assemblies with highly efficient STYROFOAM™ brand foam insulation and a durable concrete topped suface

  • Interlocking tongue and groove assembly, designed to be loose laid

  • Concrete topping is a nominal 3/8” (10 mm) thick latex modified grey concrete with a smooth finish. A 1/8” (3 mm) relief score line is cut at 2’ (610 mm) along the 4’ (1220 mm) length

  • Extends membrane life by protecting against:

    • Temperature extremes, UV degradation and hail damage

    • Mechanical damage

    • Occasional roof maintenance foot traffic

    • Vandalism and environmental elements (birds, weather etc.)

  • Easy to install

  • Visually attractive

  • Easy to clean

  • Reusable

  • Styrofoam™ brand extruded polystyrene insulation has proven durability and outstanding moisture-resistant qualities in roof applications, providing excellent moisture resistance and long term RSI (R) values
